  • AC partial discharge test equipment ACPD-05X

With regards to partial discharge test

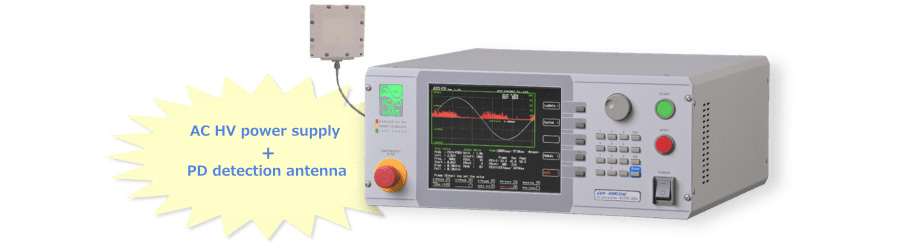

AC partial discharge test equipment ACPD-05X

By microwave patch antenna system
Not affected by the test circuit realizing a highly sensitive partial discharge test! !

As the use of inverter coil will increase in the future, such as house hold appliances, automotive coil, industrial commodity, the examination of such coils will spread and must be done.

Features

  • The electromagnetic waves generated from partial discharge with a microwave patch antenna system are detected directly.
  • Installing an antenna near the test coil, high sensitivity partial discharge test can be performed.
  • Since handling is easy ,the introduction to production line can be facilitated.
  • The automation of the partial discharge test becomes possible.
  • Working efficiency improves by the convenient function required for evaluation of a partial discharge test. Break down voltage (CSV), electric discharge extinction voltage (CEV), electric discharge level (PDpeak), electric discharge occurrence probability confirmation k (PDpuls), etc .
  • Since the electric discharge signal is indicated by a waveform, it is possible to use it visually ,clearly and easily.

Overview


Easy to understand screendisplay

The graph of applied voltage (AC) and electric discharge signal is displayed on the screen in real time. The condition of electric discharge generating is observable during an examination. Moreover, the memory of the graph under examination is also memorized into the main part after display and judgment are possible.

Variegated graph-analysis function

Applied voltage PD characteristic graph Transition of the voltage value during AUTO examination and electric discharge level display.The electric discharge exceeding a threshold value level is displayed in red.


Applied voltage Qmax characteristic graph The electric discharge level in the applied voltage during AUTO test is displayed.It is graph-ization about partial discharge inception voltage (CSV) and partial discharge extinction voltage (CEV).


Electric discharge generating accumulation frequency characteristic graph The electric discharge generating accumulation frequency characteristic in the electric discharge level generated during AUTO test is displayed.

Specification

Power supply Test voltage & capacity Maximum5000Vrms 500VA
Minimum variable step4Vrms
Test frequency50Hz/60Hz ( Set up at 1Hz step is possible in 50~200Hz)
Partial discharge inspection Detection sensitivity -90~-30dBm
Detection result display-90 to -30dbm indicates as 100 level
Detection charge range50pC or more as a relative level.
Antenna cableStandard 2m (SMA coaxial cable)
Voltage measurement Voltage display 0~5000Vrms(Effective value)
Measurement accuracy±1.5% of reading
Current leak detection 1~ 25mA(1mA step) or 100mA
General Input power supply V. AC100~240V±5% 50Hz/60Hz 10A
Temperature/ humidity23℃±5℃ 20%~80%RH
External interfaceParallel I/O、RS-232C、USB(Test control, test data input and output
Size・WeightW430×H177×D442 ※突起物含マズ About 22kg
  • Power supply
    Test voltage & capacityMaximum5000Vrms 500VA
    Minimum variable step4Vrms
    Test frequency50Hz/60Hz ( Set up at 1Hz step is possible in 50~200Hz)
  • Partial discharge inspection
    Detection sensitivity-90~-30dBm
    Detection result display-90 to -30dbm indicates as 100 level
    Detection charge range50pC or more as a relative level.
    Antenna cableStandard 2m (SMA coaxial cable)
  • Voltage measurement
    Voltage display0~5000Vrms(Effective value)
    Measurement accuracy±1.5% of reading
  • Current leak detection
    Current disruption1~ 25mA(1mA step) or 100mA
  • General
    Input power supply V.AC100~240V±5% 50Hz/60Hz 10A
    Temperature/ humidity23℃±5℃ 20%~80%RH
    External interfaceParallel I/O、RS-232C、USB(Test control, test data input and output
    Size・WeightW430×H177×D442 ※突起物含マズ About 22kg
