Integrated tester

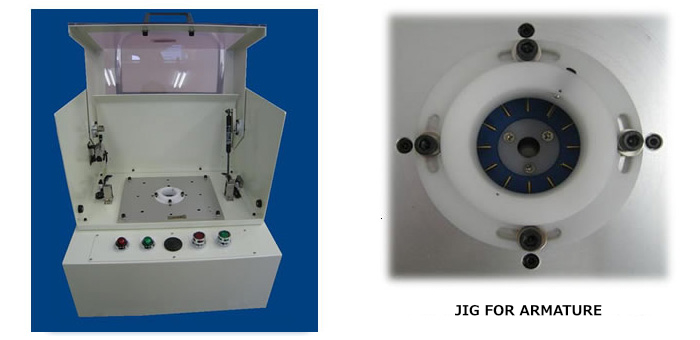

Armature Coil Test System

Characteristics to be inspected
Control method You can specify intended apparatus etc.
Or suited proposal could be offered by us.

Features

  • Carry out combined control of each testing machine, and do all the examinations automatically.
  • Moreover, it is also possible to switch a circuit manually and to examine individually.
  • If personal computer control is used, registration of a judging standard , an individual examination, etc. can be done.All can also be operated from a screen.

Automatic Testing Equipment

Measurement Apparatus

Control Method

Company Know How

  1. シグナルタワー
  2. 回転灯
  3. 受電部
    UPS(無停電電源)搭載により、突然の停電などからデータを守ります。
  4. Display
    Operativity improves by adoption of touch panel.
  5. インパルス巻線試験機
  6. Key Board
    It is a convenient drawer type which can be stored when not nessary.
  7. PC
    Complete control of each apparatus is carried out, and various setup and data storage are performed.
  8. 計測機器類
    実施する試験項目・内容に合わせて機器の選定を致します。
    お客様から機種のご指定、または機器をご支給いただいても構いません。
     A. 直流抵抗計
     B. 回転方向試験器
     C. LCRメータ
     D. 耐圧・絶縁抵抗計
  9. 切替部
    試験項目・回路数に合わせた専用設計。高電圧対策や4端子測定にも対応。

※This is a personal computer control type example. (All become an exclusive design item by the arrangement.)

PC Screen

Examination Screen

The result value of each examination and a judgment are quite obvious. The number of times of an examination is also counted.

Judging standard value creation screen

each measuring instrument is not operated but creation of a judging standard is simply possible on a screen.

Test result screen

Test result data is saved by a CSV file. Impulse waveform preservation is also possible by bit map.




Specifications

Primary power supply User specification voltage(100V、200V、240V level)
Rack size530(W)×1700(H)×750(D) (※Based on specification)
Painting colorUser specification
  • Primary power supply
    User specification voltage(100V、200V、240V level)
  • Rack size
    530(W)×1700(H)×750(D) (※Based on specification)
  • Painting color
    User specification
