Comprehensive testing machine
Integrated tester

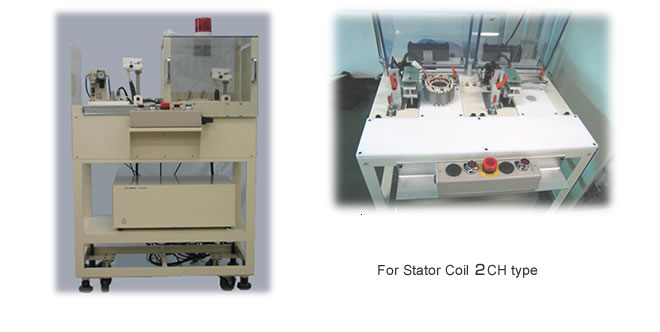

Stator Coil Test System
Characteristics to be inspected
Control method You can specify intended apparatus etc.
Or suited proposal could be offered by us.
Features
- Carry out combined control of each testing machine, and do all the examinations automatically.
- Moreover, it is also possible to switch a circuit manually and to examine individually.
- If personal computer control is used, registration of a judging standard , an individual examination, etc. can be done.All can also be operated from a screen.
Automatic Testing Equipment
Measurement Apparatus

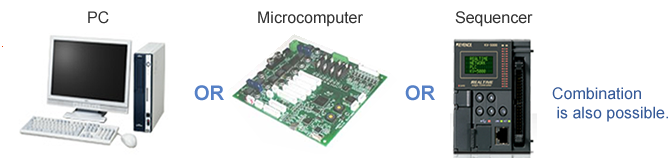

Control Method
Company Know How
- Signal Tower
- Warning Light
- Power Input
The integrated UPS prevents data loss during unexpected power failures。 - Display
Featuring a touch panel for more intuitive operation and improved usability。 - Impulse Winding Tester
- Keyboard and Mouse
It features a convenient retractable design that can be stowed away when not in use。 - PC
It provides centralized control of all devices, managing system settings and data storage。 - Measurement Equipment
We will select the most suitable equipment based on your specific test items and requirements。
Customers may specify their preferred models or provide their own equipment for integration。
A. DC Resistance Meter
B. Phase Rotation Tester
C. LCR Meter
D. Hipot & IR Tester - Switching Unit

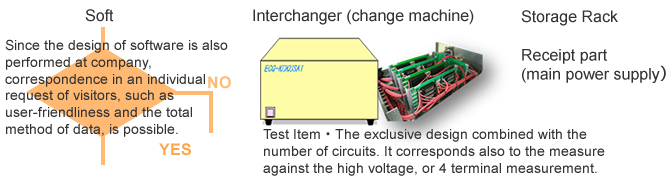

Custom-designed to match specific test items and the number of circuits。Supports high-voltage safety measures and 4-terminal measurement。
※This is a personal computer control type example. (All become an exclusive design item by the arrangement.)
PC Screen
Examination Screen
The result value of each examination and a judgment are quite obvious. The number of times of an examination is also counted.
Judging standard value creation screen
each measuring instrument is not operated but creation of a judging standard is simply possible on a screen.
Test result screen
Test result data is saved by a CSV file. Impulse waveform preservation is also possible by bit map.
The main examination items
- Impulse Teste （layer short , Partial discharge）
- DC resistance teste
- Insulation resistance test
- AC resisting pressure test
- Rotation checker , Polarity test
- LCR measurement
- No-load current ・Power measurement
- Induction voltage measurement
- Torque measurement
- Number of rotations measurement ・Others
Optional feature
- Test result data storage (Equiped with standard PC specs)
- Contact and a non-contact temperature measurement (DC resistance correction for temperature)
- Process control (input of data such as workers ID , model number,edit, and management, etc)
- Bar code inputs (read out of standard value, string attachment of test result, etc.)
- Examination results document creation and automatic printing (Label Printer etc. correspond)
- Others
Specifications
| Primary power supply | User specification voltage（100V、200V、240V level) |
|---|---|
| Rack size | 530(W)×1700(H)×750(D) (※Based on specification) |
| Painting color | User specification |
- Primary power supply
- User specification voltage（100V、200V、240V level)
- Rack size
- 530(W)×1700(H)×750(D) (※Based on specification)
- Painting color
- User specification
