Features
- Built-in overcurrent protection circuit. Breakdown test by continuous operation is possible.
- Continuous operation by Partial discharge sensor (MW-95) PD test is possible （Separate monitor such as an oscilloscope is required）
Discharge testing machine
With regards to partial discharge test
Repetitive Impulse Surge Power Supply IPX-05BP-PDIV
Power supply that can output repeated impulse voltages from low to high frequencies for the evaluation of surge resistant wires and nanocomposite wires used in EV motors, etc.
A repetitive impulse voltage that simulates an inverter surge can be applied to the target sample continuously for a long time. It covers evaluation tests for capacitive or inductive loads from small to large capacities.
Overview
Output waveform (reference)

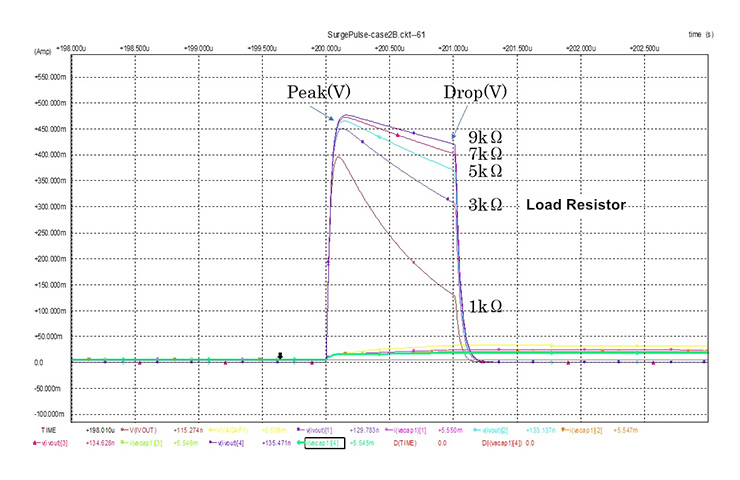

Waveform image (example of Peak voltage and Drop voltage variations)
Specification
| Output Voltage | Unipolar | 0-Peak max 5,000 V positive/minus common |
|---|---|---|
| Two poles | peak-peak max 10,000 V positive/minus common | |
| Output frequency | Repeated output: 1Hz~20KHz ※Usage over 10kHz: High-frequency equipment registration required |
|
| Pulse waveform | Rising time without load:100 nsecs. or less | |
| Load capacity | about 500pF ※Customizable to your requirements | |
| Wave pattern | Surge waveform/Square waveform/Pseudo-inverter waveform/Rectangular waveform(Compliant with IEC TS 63263) | |
| Test mode | PDIV Test (Single)/ VT Test (Continuous) | |
- Output Voltage
- Unipolar0-Peak max 5,000 V positive/minus common
Two polespeak-peak max 10,000 V positive/minus common
- Output frequency
- Repeated output: 1Hz~20KHz
※Usage over 10kHz: High-frequency equipment registration required
- Pulse waveform
- Rising time without load:100 nsecs. or less
- Load capacity
- about 500pF ※Customizable to your requirements
- Wave pattern
- Surge waveform/Square waveform/Pseudo-inverter waveform/Rectangular waveform(Compliant with IEC TS 63263)
- Test mode
- PDIV Test (Single)/ VT Test (Continuous)
●Special production of impulse surge power is also available upon upon consultation.
