  • General Winding Testing Machine WTS-05

Integrated tester

General Winding Testing Machine WTS-05

Motor, transformer and coil tests are done on this unit!!
All in one tester for coil winding products!!

Features

  • ４tests can be carried out with one unit 1. Impulse test
    2. DC resistance test
    3. AC voltage test
    4. Insulation resistance test
  • Built-in 10 circuits switcher free selection
  • Additional options 1. Impulse PD (partial discharge) test*1 2. Inductance test*2 3. Rotation direction*2

*1: PD sensor added
*2: Connected with specified measuring instrument

Panel

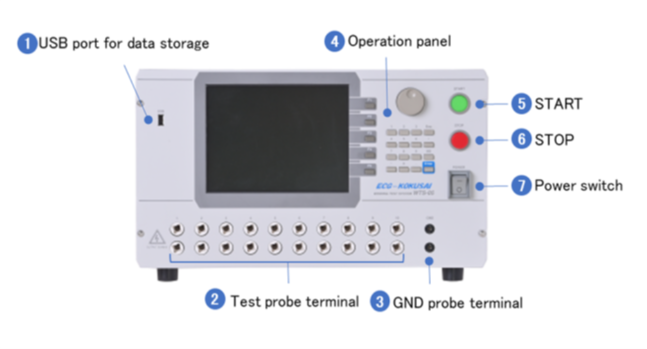

Front panel

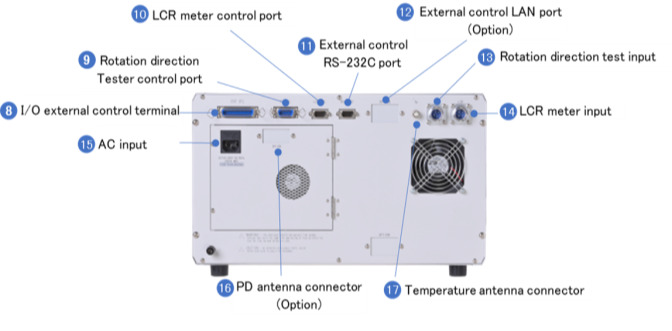

Back panel

Specifications

Impulse test Applied voltage 0.5kV～5.0kV　0.1kV step
Judgment itemArea, Diff-Area、Flutter or Laplacian
Test inductance range10µH less
DC resistance Measurement terminal 4 terminal measurement method
Measurement range1.000mΩ～350.00Ω
AC Hi-Pot Test voltage AC0.2kV～5.0kV　（50Hz/60Hz）
Output capacity100VA（5.0kV、20mA）
Measurement rangeUpper limit 0.01〜20.00mA　
Lower limit 0.01〜19.99 mA and OFF
Insulation resistance Test voltage DC25V/50V/100V/250V/500V/1000V
Measurement range0.001～9990MΩ
Test pattern Number of switching 10 circuits　Hi/Lo can be arbitrarily set
Test stepMaximum 100 steps (total 200 steps)
General External communication RS-232C、I/O、USB（Data storage only）
AccessoriesAC cable 1, Test cable（1.5m）10
Dimension/WeightW430×H245×D485 / weight 27.5kg
Power supply voltage100V～240V
  • Impulse test
    Applied voltage0.5kV～5.0kV　0.1kV step
    Judgment itemArea, Diff-Area、Flutter or Laplacian
    Test inductance range10µH less
  • DC resistance
    Measurement terminal4 terminal measurement method
    Measurement range1.000mΩ～350.00Ω
  • AC Hi-Pot
    Test voltageAC0.2kV～5.0kV　（50Hz/60Hz）
    Output capacity100VA（5.0kV、20mA）
    Measurement rangeUpper limit 0.01〜20.00mA　
    Lower limit 0.01〜19.99 mA and OFF
  • Insulation resistance
    Test voltageDC25V/50V/100V/250V/500V/1000V
    Measurement range0.001～9990MΩ
  • Test pattern
    Number of switching10 circuits　Hi/Lo can be arbitrarily set
    Test stepMaximum 100 steps (total 200 steps)
  • General
    External communicationRS-232C、I/O、USB（Data storage only）
    AccessoriesAC cable 1, Test cable（1.5m）10

    Dimension/WeightW430×H245×D485 / weight 27.5kg
    Power supply voltage100V～240V

Option

Impulse Partial Discharge Detection method The electromagnetic discharge detection depends on the micro-sensor
Judgment itemPD level ,PD count

Extended test (connection of measuring instruments and automatic testing is possible)

Inductance measurement Connected device 3533 by HIOKI（RS232C option required）
Rotation direction test Connected device RMC-01C　by ECG /　212 by EMATIC
